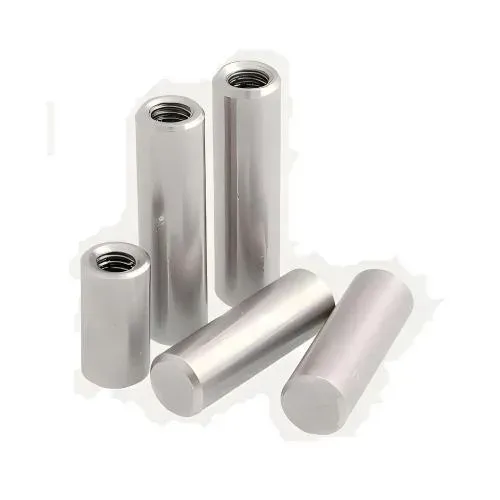

Dowel Pins
Hextro supplies precision dowel pins from China for locating and alignment, including hardened steel or stainless types with chamfered ends and metric or inch sizes.
Specifications
- Available Materials
- Hardened steel, carbon steel, alloy steel, stainless steel and other specified materials according to strength, wear resistance, corrosion resistance and application requirements.
- Surface Finish Options
- Ground finish, plain oiled finish, black oxide, zinc plating, nickel plating, passivation and other custom surface treatments.
- Common Applications
- Fixture building, gearbox housings, die sets, automotive assemblies, machinery alignment, positioning systems, molds, jigs and general industrial equipment.
- What We Need for Quotation
- Please send pin diameter, length, tolerance class, material grade, hardness requirement, chamfer requirement, surface finish, quantity, application details and drawings or samples if available.
- Quality Check Points
- Diameter tolerance, length, roundness, straightness, chamfered ends, hardness, surface finish, burr control, material confirmation and packaging can be checked according to order requirements.
Dowel pins are solid precision-ground locating pins used to achieve repeatable alignment between mating parts. Unlike taper pins, dowel pins rely on straight, interference or slip fits to control position in fixtures, housings, machinery and assembly systems.
Hextro supplies dowel pins in metric and inch sizes according to standards, drawings, samples or customized requirements. Common references may include ISO 8734, ISO 8735, DIN 6325 and ASME / ANSI patterns depending on customer requirements.
Available Materials: Hardened steel, carbon steel, alloy steel, stainless steel and other specified materials according to strength, wear resistance, corrosion resistance and application requirements.
Surface Finish Options: Ground finish, plain oiled finish, black oxide, zinc plating, nickel plating, passivation and other custom surface treatments.
Common Applications: Fixture building, gearbox housings, die sets, automotive assemblies, machinery alignment, positioning systems, molds, jigs and general industrial equipment.
What We Need for Quotation: Please send pin diameter, length, tolerance class, material grade, hardness requirement, chamfer requirement, surface finish, quantity, application details and drawings or samples if available.
Quality Check Points: Diameter tolerance, length, roundness, straightness, chamfered ends, hardness, surface finish, burr control, material confirmation and packaging can be checked according to order requirements.
